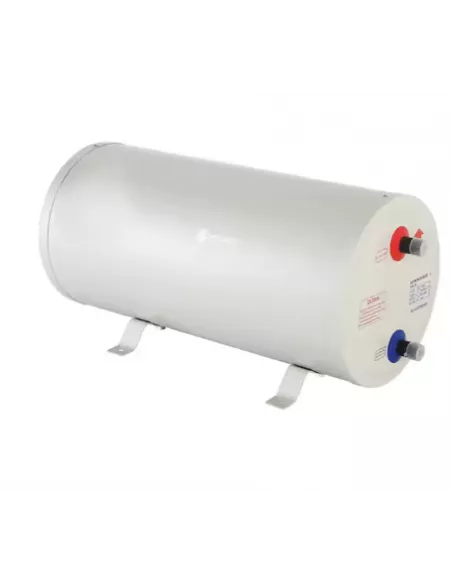

Campervan water heater: Braguscamp 6 L 12 V 200 W boiler with digital control
The Braguscamp 6 L 12 V 200 W boiler brings hot water to your campervan, caravan or 4x4. This compact water heater is installed horizontally on a flat surface and runs on the vehicle's 12 V system, heating the water up to 50 °C in about 2.5 hours, ready for showers, washing up or cleaning.
It comes with a digital remote control that shows the temperature on screen and lets you set the adjustable thermostat precisely. The insulated steel casing keeps the water hot for longer and reduces consumption, while the overpressure valve and the 4 bar maximum inlet pressure add safety to your water system.
With 1/2" male inlet and outlet connections and compatibility with pressure and submersible pumps, it fits into most campervan water systems. Screws, valve and hose are included. Braguscamp ships it to Spain and Europe, and our team can answer your installation questions.
Why choose the Braguscamp 6 L boiler
6 litres of hot water
A compact tank sized for campervans, caravans and 4x4 builds.
12 V and 200 W
Runs on the vehicle's 12 V system with a 200 W heating element.
Digital remote control
Shows the temperature on screen and lets you adjust the thermostat.
Up to 50 °C in 2.5 h
Heats the water to a comfortable temperature for showers and washing.
Insulated steel casing
Keeps the heat in for longer and reduces energy consumption.
Built-in safety
Overpressure valve and a maximum inlet pressure of 4 bar.
Features of the Braguscamp 6 L 12 V water heater

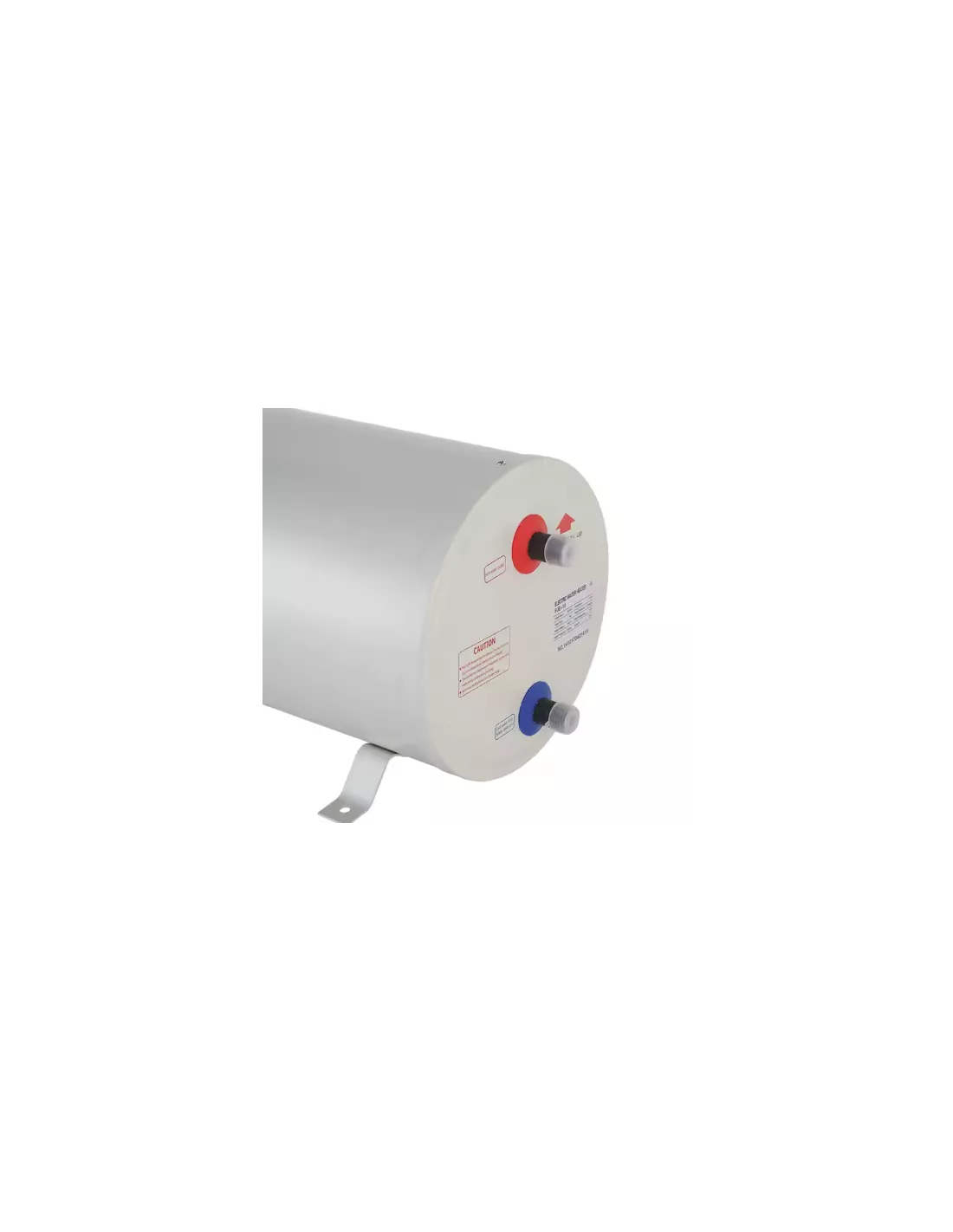

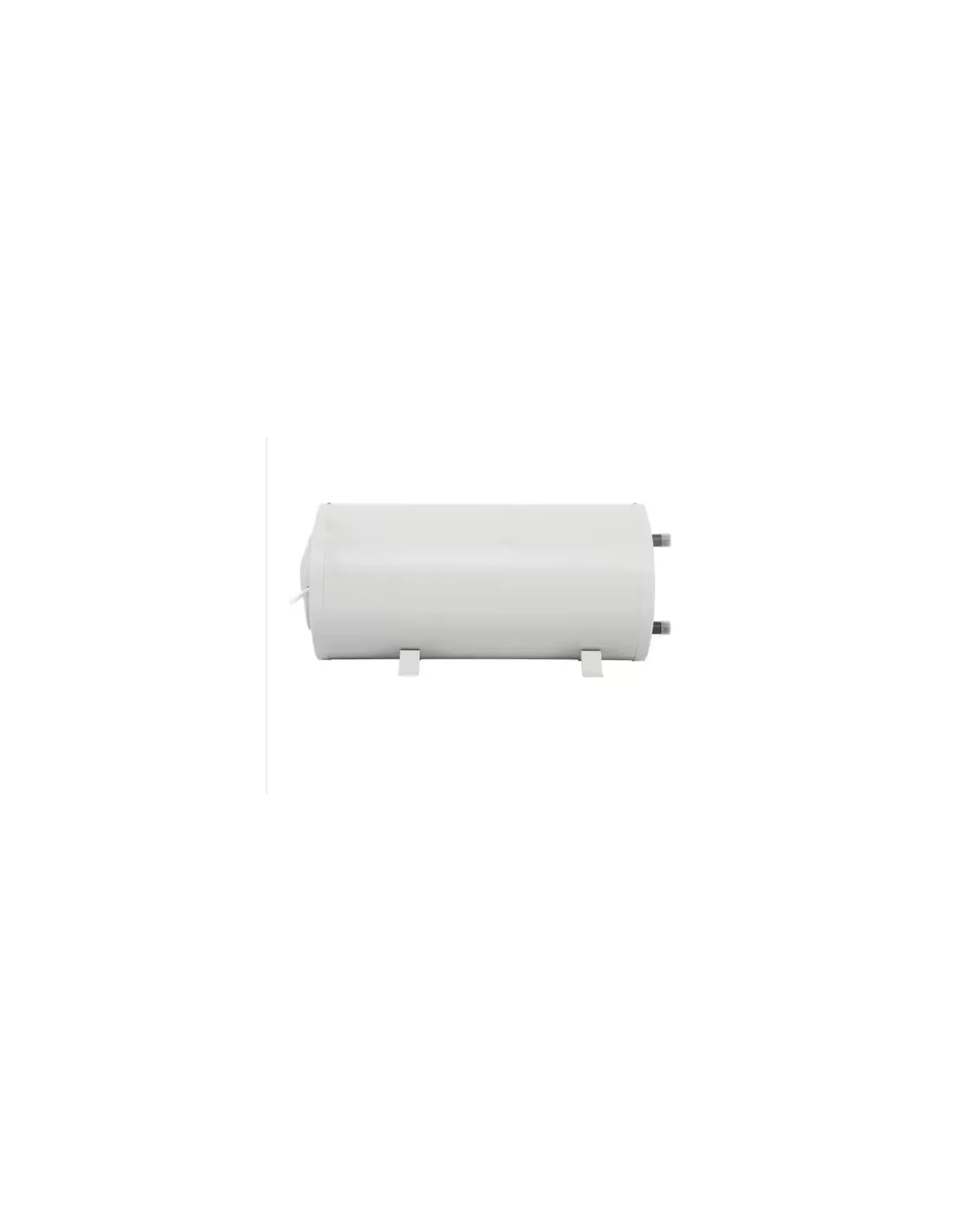

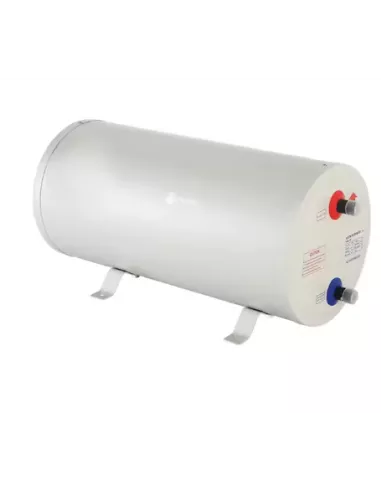

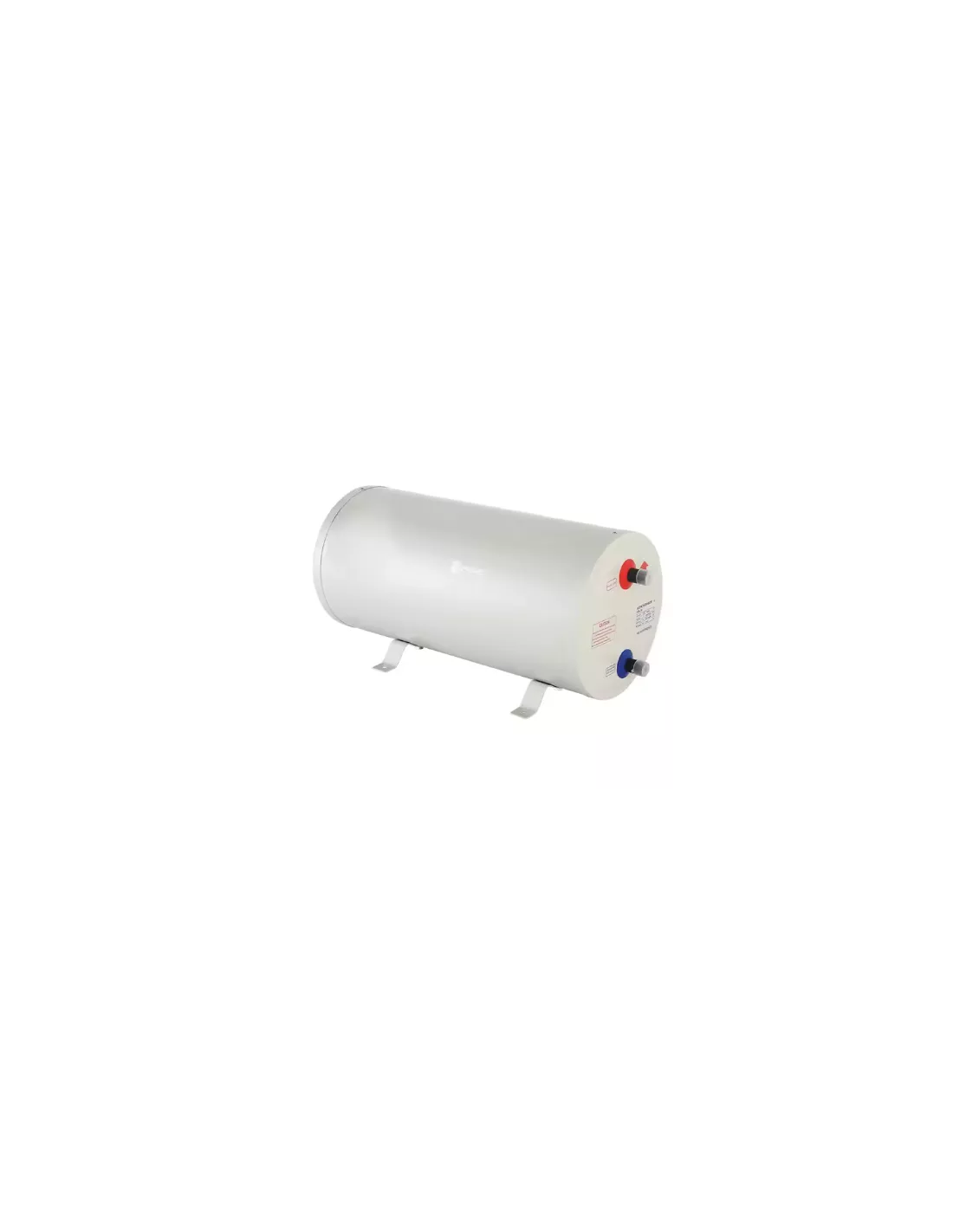

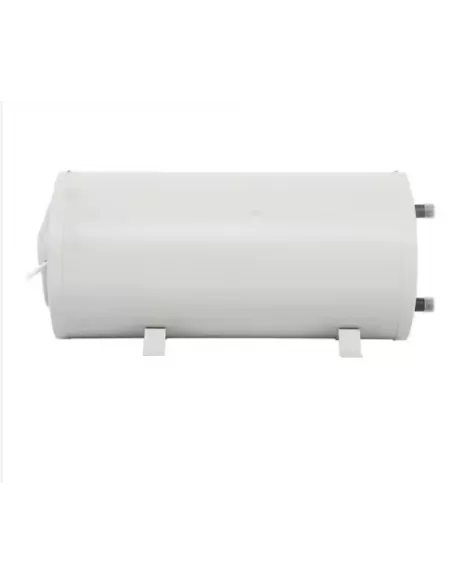

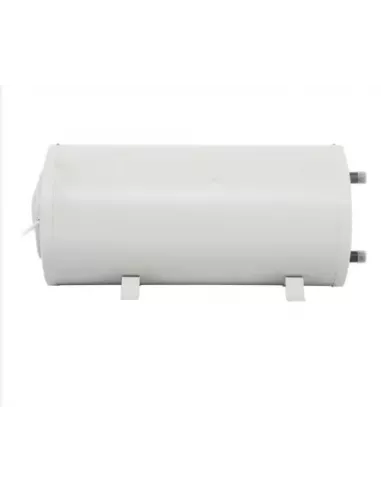

Compact 6 L horizontal design
The boiler has a cylindrical 6-litre tank designed to be installed horizontally on a flat surface. This format makes good use of the space under a bench, in a cupboard or in a garage area of your vehicle. It weighs 2 kg, so it adds very little to the load. Check the structural measurements in the product images before planning the installation.
12 V, 200 W heating up to 50 °C
Running on 12 V with a 200 W element, the boiler heats the water up to 50 °C in about 2.5 hours. It is designed for vehicles with a 12 V leisure system, so you can have hot water for a shower, the dishes or cleaning without relying on campsite facilities. Plan your battery and charging setup according to this consumption.
Digital control and adjustable thermostat
The included digital remote control displays the water temperature and lets you adjust the thermostat precisely and comfortably. You can choose the temperature that suits each use, from a warm shower to washing up, and see at a glance when the water is ready, without having to reach the boiler itself.
Insulated steel casing
The steel casing is insulated to keep the water hot for longer once it has reached temperature. Less heat loss means the element works less often, which helps save energy, an important point when you depend on your batteries. The cylindrical shape also makes cleaning and maintenance easier.
Safe and compatible with your water system

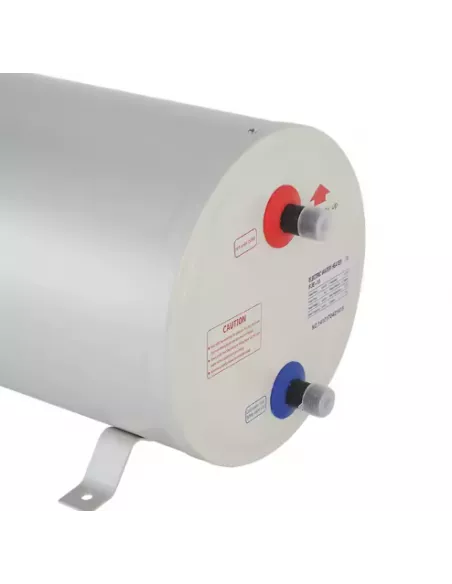

An overpressure valve protects the system, and the boiler accepts a maximum inlet pressure of 4 bar. With 1/2" male inlet and outlet connections, it is compatible with pressure pumps and submersible pumps used in recreational vehicles. Screws, valve and hose are included for a quick installation.

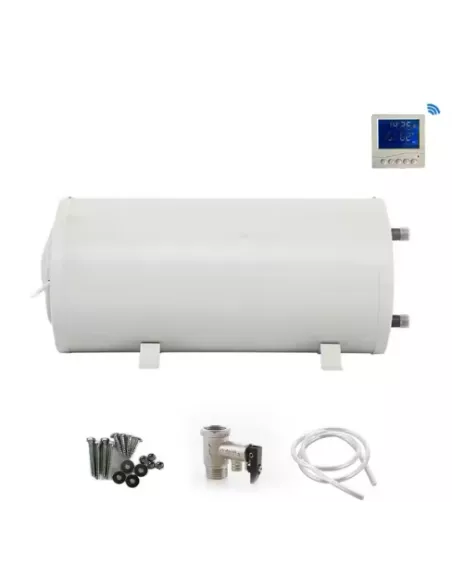

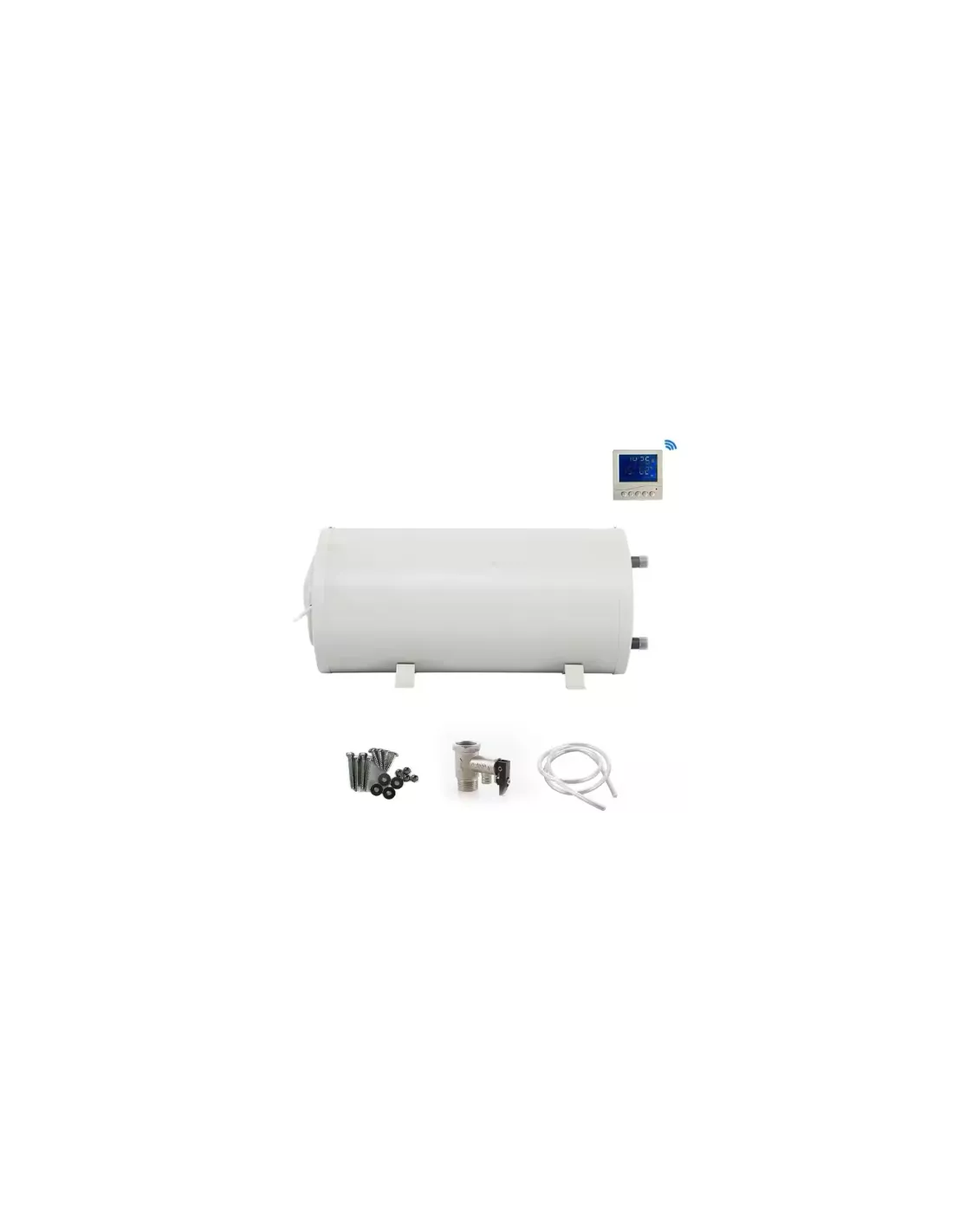

What's included
✓ Braguscamp 6 L 12 V 200 W boiler
✓ Digital remote control with display
✓ Overpressure valve
✓ Installation screws
✓ Hose
Capacity and who it is for
With 6 litres of hot water, this boiler is aimed at campervan, caravan and 4x4 owners who want hot water on board with a simple 12 V installation. It suits compact builds where space is limited and where a gas heater is not an option or not wanted.
✓ Capacity: 6 litres
✓ Power: 12 V, 200 W
✓ Heating: up to 50 °C in 2.5 h
✓ Max. inlet pressure: 4 bar
Power and installation
The boiler runs on 12 V with a power of 200 W. Connect it to your leisure electrical system with appropriate cable and protection, and size your battery and charging (solar, alternator or mains) for this consumption. If in doubt, ask a qualified installer to check your electrical setup.
Install it horizontally on a flat surface, using the included screws. Connect the 1/2" male inlet and outlet to your water circuit, with a pressure or submersible pump, and do not exceed 4 bar at the inlet. Fill the tank with water before switching on the heating element.
Tips to get the most out of it
✓ Always fill the boiler with water before switching it on.
✓ Set only the temperature you need to save battery.
✓ Heat the water when you have solar or alternator charging.
✓ Check the temperature on the display before showering.
✓ Do not exceed 4 bar of inlet pressure.
✓ Drain the boiler before frosts or long periods without use.
Technical specifications
| Product | 12 V water heater (boiler) |
| Capacity | 6 L |
| Voltage | 12 V |
| Power | 200 W |
| Heating | Up to 50 °C in 2.5 h |
| Max. inlet pressure | 4 bar |
| Connections | 1/2" male inlet and outlet |
| Casing | Insulated steel |
| Control | Digital remote with display |
| Installation | Horizontal, on a flat surface |
| Weight | 2 kg |
| Colour | White |
| Model | BRAGUS-CALE1 |
| Reference | BRAGUS-CALE1 |
Braguscamp water solutions compared
| 30 L solar tank | 24 L shower tank | 6 L 12 V boiler (this) | |
|---|---|---|---|
| Capacity | 30 L | 24 L | 6 L |
| Water heating | Sun (matte black) | — | Electric, up to 50 °C |
| Pressure | 12 V pump | Manual pump | Max. inlet 4 bar |
| Power | 12 V, 4.5–6.6 A | No electricity | 12 V, 200 W |
| Mounting | Roof rack or bars | Portable | Horizontal, inside |
| Weight | 10 kg | 3 kg | 2 kg |
| Reference | DPD-30L | DPD-24L | BRAGUS-CALE1 |
The 6 L boiler is the only option that heats water electrically inside the vehicle; the 30 L solar tank uses the sun on the roof, and the 24 L tank is a portable shower with no electricity.
Ideal for
✓ Hot water in campervans and caravans
✓ Compact 4x4 and overland builds
✓ Showers with a pressure-pump water system
✓ Washing up with warm water on board
✓ Off-grid trips with a 12 V leisure system
Care and maintenance
✓ Drain the tank before frosts or long storage.
✓ Flush it with clean water periodically.
✓ Check connections and the overpressure valve for leaks.
✓ Keep the remote control dry and away from water splashes.
Frequently asked questions about the Braguscamp 6 L 12 V boiler
How long does it take to heat the water?
The boiler heats the water up to 50 °C in about 2.5 hours. The exact time can vary with the starting water temperature and the ambient conditions, so heat it in advance when you know you will need it.
Can I run it from my leisure battery?
Yes, it runs on 12 V with 200 W of power. Make sure your battery capacity and charging system can cover this consumption, and protect the circuit with a suitable fuse and cable. Heating while driving or with solar charging helps preserve the battery.
How is it installed?
It is installed horizontally on a flat surface with the included screws. Connect the 1/2" male inlet and outlet to your water circuit and do not exceed 4 bar of inlet pressure. Check the structural measurements in the images before choosing the location.
Is it compatible with my water pump?
It is compatible with pressure pumps and submersible pumps used in recreational vehicles, as long as the inlet pressure does not exceed 4 bar. If your system uses higher pressure, fit a pressure reducer before the boiler.
What does the digital control do?
The remote control shows the water temperature on a display and lets you adjust the thermostat precisely. You can see at a glance when the water is ready and set only the temperature you need, which also helps save energy.
Is it safe?
It includes an overpressure valve and accepts a maximum inlet pressure of 4 bar. As with any water heater, always fill it before switching on, follow the installation instructions and have the electrical connection done correctly.
What comes in the box?
You receive the 6 L boiler, the digital remote control with display, the overpressure valve, installation screws and a hose, so you have the essentials to integrate it into your water system.
How is it different from the 30 L solar tank?
The 30 L solar tank goes on the roof and heats water with the sun, with a 12 V pump. The 6 L boiler is installed inside and heats water electrically with an adjustable thermostat. Some travellers combine both, or the boiler with the 24 L portable shower.
Do you ship to my country?
Braguscamp ships to Spain and to many European countries. Delivery options and cost for your address are shown at checkout. For any question, write to us on WhatsApp at +34 690 086 820 or by email at info@braguscamp.com.
Can I pay in instalments and is there a guarantee?
Yes. At checkout you can choose flexible payment with seQura to split the cost. The boiler includes the 3-year legal guarantee, and our team answers installation questions on WhatsApp and by email.
