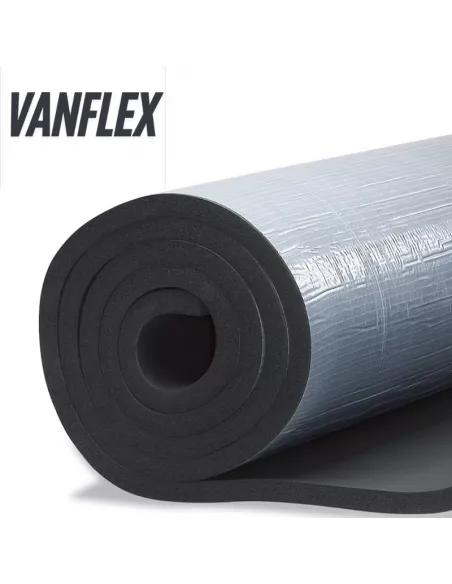

Vanflex 10 mm camper van insulation, 7.5 m² roll – roll of elastomeric foam with aluminium

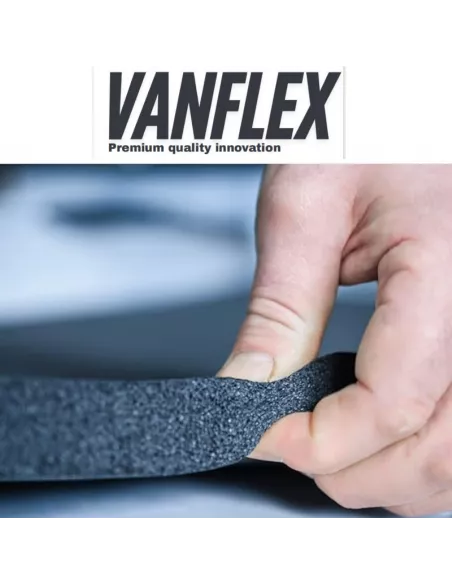

    Vanflex 10 mm camper van insulation, 7.5 m² roll – detail of the foam thickness
    Vanflex 10 mm camper van insulation, 7.5 m² roll – roll of elastomeric foam with aluminium
    Vanflex 10 mm camper van insulation, 7.5 m² roll – detail of the foam thickness

    Campervan insulation roll Vanflex 10 mm, 7.5 m² (5 m x 1.5 m)

    Vanflex 10 mm flexible elastomeric insulation roll for campervans and motorhomes. Slim, space-saving layer for floors, ribs, doors, wheel arches and other tight areas. Resists humidity and is easy to cut.

    • Thickness: 10 mm
    • Roll: 5 m x 1.5 m
    • Coverage: 7.5 m²
    • Walls, roof and doors
    €60.00
    Tax included

    Description

    Campervan insulation: Vanflex 10 mm roll, 7.5 m² (5 m x 1.5 m), at Braguscamp

    Campervan insulation: Vanflex 10 mm roll, 7.5 m² (5 m x 1.5 m), at Braguscamp

    The Vanflex 10 mm insulation roll with 7.5 m² of coverage is a flexible elastomeric material for thermal and acoustic insulation in van conversions, campervans and motorhomes. It comes as a 5 m x 1.5 m roll and is designed for walls, roof and doors, helping you keep a stable temperature inside and cut the noise that reaches the living area.

    Within the Vanflex range this 10 mm roll is the slim option of the range, chosen when every millimetre of interior space counts and the surface is curved or tight. In terms of format it is a compact 5 m roll that suits smaller vans, single zones, doors or topping up an earlier job. Pick the thickness for each area and the roll length for the size of the job.

    Elastomeric foam is a popular choice in DIY campervan insulation because it bends around curves, cuts cleanly with a sharp knife and copes well with humidity and condensation. Braguscamp supplies the Vanflex 10 mm 7.5 m² roll with shipping to Spain and Europe, and our team can help you work out how much you need.

    Why choose the Vanflex 10 mm 7.5 m² roll

    10 mm thick

    Thin profile that insulates without eating into headroom or storage space.

    7.5 m² per roll

    One 5 m x 1.5 m roll gives you 7.5 m² of material to cover a smaller van, a door or a single zone.

    Thermal and acoustic

    Helps keep warmth in during winter, limits heat gain in summer and reduces road and rain noise.

    Flexible elastomeric foam

    Adapts to curves, ribs and irregular panels, so you get fewer gaps and a neater finish.

    Handles humidity

    Elastomeric insulation resists moisture, condensation and mould, which matters inside a lived-in vehicle.

    Easy to cut and fit

    Mark, cut with a sharp knife and fit piece by piece. No special tools are needed.

    Features of the Vanflex 10 mm insulation roll (7.5 m²)

    10 mm of elastomeric insulation

    Thickness is the key decision in any campervan insulation project. At 10 mm, this roll is a practical choice for areas where space is limited: under a floor, behind thin wall linings, on wheel arches and over the ribs of the bodywork. It still adds a useful thermal and acoustic layer without stealing interior space.

    5 m x 1.5 m format: 7.5 m² of coverage

    Each roll measures 5 m x 1.5 m, giving 7.5 m² of insulation. The 5 m length is easy to handle and store, and it avoids leftovers when you are insulating a smaller van, the rear doors, the cab area or finishing off a job that only needs a few more square metres.

    Thermal and acoustic insulation

    Elastomeric foam works on two fronts. It slows the transfer of heat through the metal skin of the vehicle, so the heater works less in winter and the interior heats up more slowly in summer. It also damps vibration and reduces the drumming of panels, making the van quieter while driving and when rain hits the roof.

    Resistant to humidity and mould

    Inside a campervan, cooking, breathing and wet gear create moisture. Elastomeric insulation copes well with humidity and condensation and helps limit cold spots where water condenses on bare metal. Combined with good ventilation, it helps you keep a drier, healthier interior and protects the bodywork over time.

    Flexible and easy to work with

    The material bends around ribs, curves and corners, so you can cover irregular surfaces with tidy pieces. Measure each panel, cut with a sharp blade and fit it on a clean, dry, grease-free surface. Seal the joins with the Vanflex 15 m x 5 cm joining tape for a continuous layer. Its main uses are floors, wheel arches, body ribs, doors and curved areas.

    What's included

    ✓  1 Vanflex insulation roll, 10 mm thick

    ✓  Roll size 5 m x 1.5 m

    ✓  7.5 m² of coverage

    ✓  Flexible elastomeric thermal and acoustic insulation

    Coverage and who the 10 mm 7.5 m² roll is for

    With 7.5 m² of material in a 5 m x 1.5 m roll, this version is aimed at smaller vans, partial jobs or specific zones such as doors and the cab. Measure your panels before ordering and add a margin for cuts; if you are unsure, send us the measurements on WhatsApp or by email.

    ✓  Thickness: 10 mm

    ✓  Roll: 5 m x 1.5 m

    ✓  Coverage: 7.5 m² per roll

    ✓  Best zones: floors, wheel arches, body ribs, doors and curved areas

    Installation advice

    Start by cleaning the metal: remove dust, grease and old adhesive residue, and make sure the surface is completely dry. Make cardboard or paper templates of each panel, transfer them to the roll and cut with a sharp knife. Fix each piece according to the backing of the roll; where extra bonding is needed, use a contact adhesive suitable for elastomeric insulation and follow its instructions.

    Cover as much metal as possible and avoid gaps, because uncovered areas become cold spots where condensation forms. Tape all joins with the Vanflex joining tape. Many builders combine thicknesses: 19 mm on walls and roof and 10 mm on floors, ribs and tight areas. Plan cable runs and fixings for furniture before you insulate.

    Tips to get the most out of it

    ✓  Measure every panel and add a small margin before cutting.

    ✓  Work at room temperature so the material and any adhesive behave well.

    ✓  Press each piece firmly from the centre outwards to avoid air pockets.

    ✓  Seal every join with joining tape to avoid thermal bridges.

    ✓  Insulate the ribs and pillars too, not only the large panels.

    ✓  Keep the van ventilated after the build to control humidity.

    Technical specifications

    ProductThermal insulation roll
    PropertiesThermal and acoustic insulation
    MaterialFlexible elastomeric insulation
    Thickness10 mm
    DimensionsRoll 5 m x 1.5 m
    Coverage7.5 m²
    ApplicationsWalls, roof, doors
    ColourWhite / grey
    Weight0.8 kg
    ModelVANFLEX2
    ReferenceVANFLEX2

    Vanflex 10 mm 7.5 m² compared with other Vanflex rolls

    10 mm · 7.5 m² (this)10 mm · 15 m²19 mm · 7.5 m²
    Thickness10 mm10 mm19 mm
    Roll size5 m x 1.5 m10 m x 1.5 m5 m x 1.5 m
    Coverage7.5 m²15 m²7.5 m²
    MaterialFlexible elastomericFlexible elastomericFlexible elastomeric
    ApplicationsWalls, roof, doorsWalls, roof, doorsWalls, roof, doors
    ReferenceVANFLEX2VANFLEX1VANFLEX4

    The 15 m² roll has the same 10 mm thickness in a longer format, while the 19 mm roll offers the same coverage with more thickness for walls and roof.

    Ideal for

    ✓  Insulating floors, wheel arches and ribs

    ✓  Small vans, doors and partial jobs

    ✓  Reducing road and rain noise inside the van

    ✓  Motorhomes, caravans and work vehicles

    ✓  DIY builders who want a clean, flexible material

    Care and maintenance

    ✓  Store unused material rolled, flat and away from direct sunlight.

    ✓  Keep the roll dry and clean until you install it.

    ✓  Check joins and edges from time to time and re-tape any that lift.

    ✓  Ventilate the vehicle regularly to limit condensation.

    Frequently asked questions about the Vanflex 10 mm 7.5 m² insulation roll

    Is one 7.5 m² roll enough to insulate my van?

    It depends on the size of the van and the zones you want to cover. A 7.5 m² roll suits smaller vans, doors or a single zone. Measure the panels, add a margin for cuts and send us the figures on WhatsApp or by email if you want a second opinion.

    Should I choose 10 mm or 19 mm?

    This roll is 10 mm. Choose 10 mm for floors, ribs, wheel arches and areas where space is tight. Many builders combine both: 19 mm on large panels and 10 mm where thickness would get in the way.

    What is the difference between this roll and the 10 mm 15 m² roll?

    Both are 10 mm thick and made of the same flexible elastomeric insulation. The difference is the format: this one is 5 m x 1.5 m (7.5 m²), while the other is 10 m x 1.5 m (15 m²). Choose the smaller roll when you only need a few square metres.

    And compared with the 19 mm 7.5 m² roll?

    It has the same 7.5 m² coverage and 5 m x 1.5 m format, but 19 mm of thickness. The 19 mm version insulates more on walls and roof; this 10 mm version saves space and adapts better to curves.

    Can I use it on the roof, walls and rear doors?

    Yes. The sheet lists walls, roof and doors as applications. Clean and dry the metal first and make sure the pieces are well fixed, especially on the roof. Its 10 mm thickness also makes it easy to fit inside doors and over ribs.

    Does it help against condensation and mould?

    Elastomeric insulation resists humidity, condensation and mould, and covering bare metal reduces the cold spots where water condenses. It is not a substitute for ventilation, though. Combine the insulation with roof vents or windows that you can open, and avoid drying wet clothes inside without airflow.

    How do I cut and fix the insulation?

    Make templates of each panel, mark them on the roll and cut with a sharp knife or blade. Fit the pieces on a clean, dry, grease-free surface. Where extra bonding is needed, use a contact adhesive suitable for elastomeric insulation and follow its instructions. Finish the joins with joining tape.

    Do I need the Vanflex joining tape?

    It is highly recommended. The Vanflex joining tape, 15 m x 5 cm, seals the joins between pieces so the insulating layer stays continuous. This avoids thermal bridges and small gaps where moisture can collect, and gives a tidier finish before you put up the panels.

    Do you ship to my country?

    Braguscamp ships to Spain and to many European countries. You will see the delivery options and cost for your address at checkout. If you have any question about delivery, write to us on WhatsApp at +34 690 086 820 or by email at info@braguscamp.com.

    Can I pay in instalments and is there a guarantee?

    Yes. At checkout you can choose flexible payment with seQura, which lets you split the purchase into instalments. All products include the 3-year legal guarantee. If you need help choosing between thicknesses or roll sizes, our team will be happy to advise you.

    Order your Vanflex 10 mm 7.5 m² roll

    Add the roll to your cart on braguscamp.com, or write to us on WhatsApp or at info@braguscamp.com and we will help you calculate the material for your campervan insulation.

    Contact us

    Order your Vanflex 10 mm 7.5 m² roll

    Vanflex 10 mm Campervan Insulation Roll 7.5 at Braguscamp

    Have questions about vanflex 10 mm Campervan Insulation Roll 7.5 or want to know which option suits you best? Our team will advise you with no obligation on WhatsApp. Discover more products in the Braguscamp online shop.

    Product Details

    Property
    Aislante térmico y acústico
    Brand:
    VANFLEX
    Product Family:
    Camper Products and Accessories
    Type of Product:
    Thermal Insulator
    Weight (Kg):
    0.800kg
    Color:
    Gray
    White
    Material:
    Aislante Elastomérico Flexible
    Applications:
    Aislante Térmico y Acústico
    Coverage Area:
    7,5 m²
    Dimensions:
    10mm (7,5 m²)
    Model:
    VANFLEX2
    Espesor:
    10mm
    Referencia:
    VANFLEX2
    EAN:
    8436630980382
    Clase logística
    XXXS
    VANFLEX2
    8436630980382
