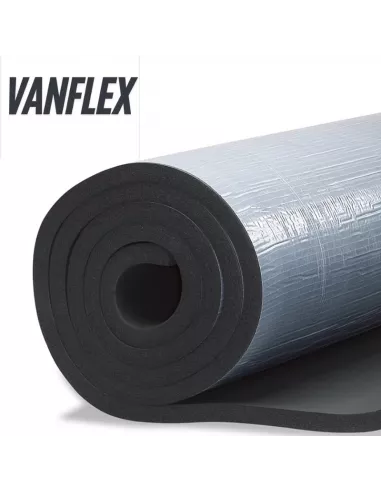

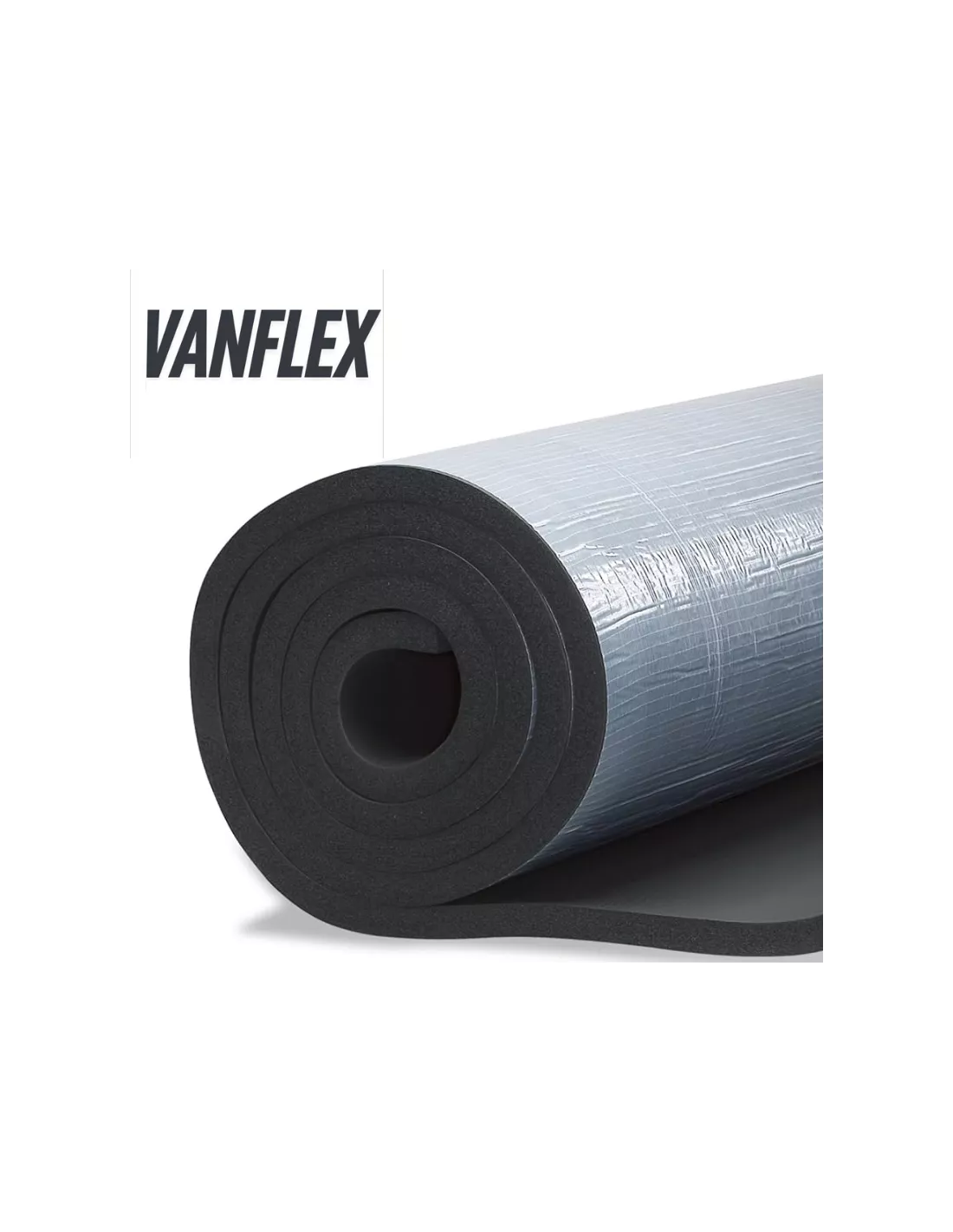

Vanflex 19 mm camper van insulation, 15 m² roll – roll of elastomeric foam with aluminium

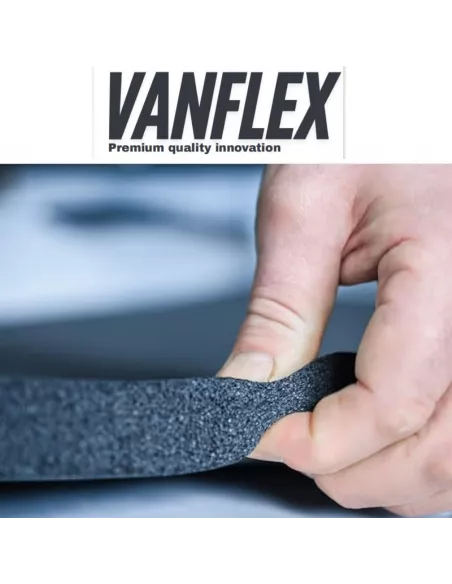

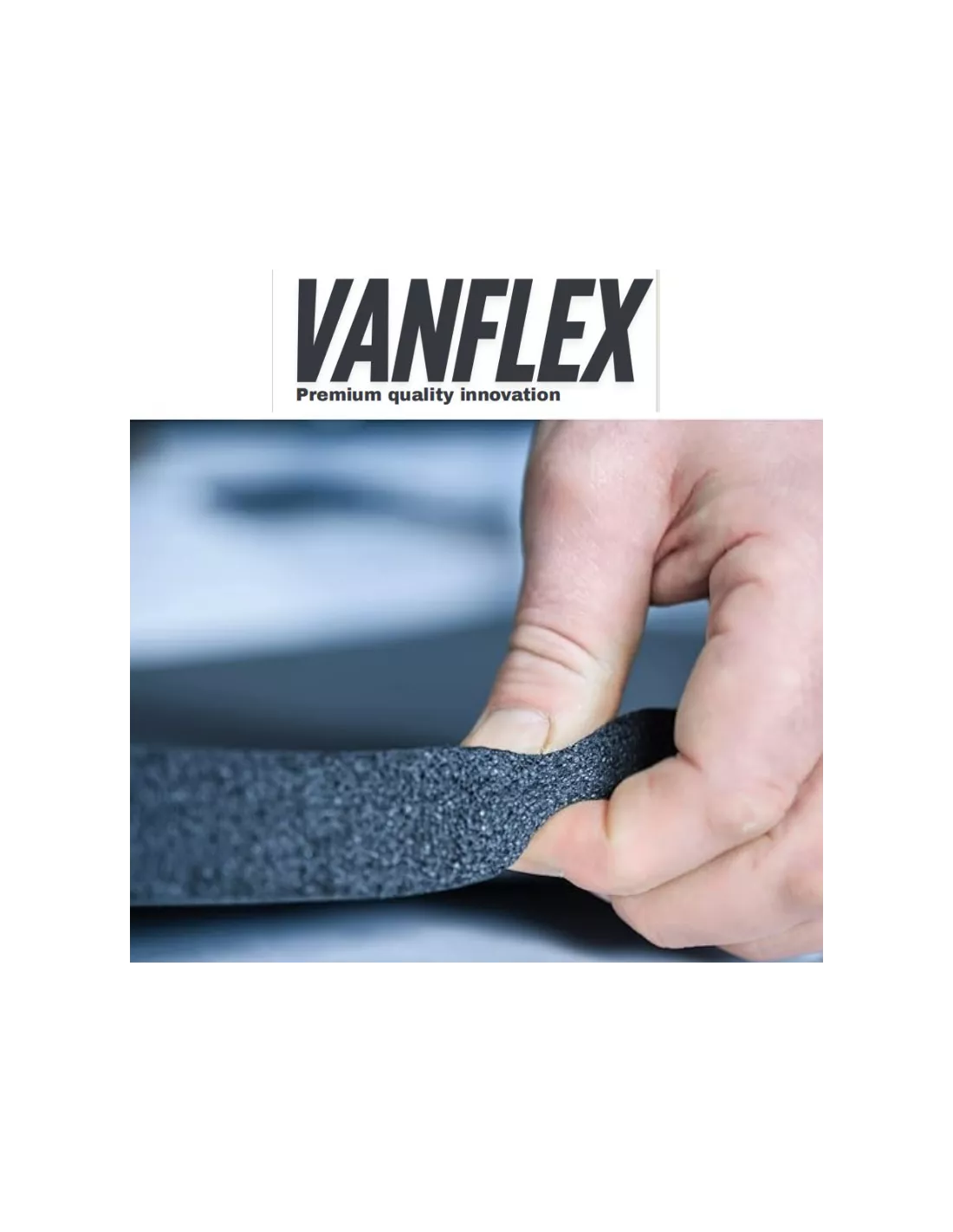

    Vanflex 19 mm camper van insulation, 15 m² roll – detail of the foam thickness
    Vanflex 19 mm camper van insulation, 15 m² roll – roll of elastomeric foam with aluminium
    Vanflex 19 mm camper van insulation, 15 m² roll – detail of the foam thickness

    Campervan insulation roll Vanflex 19 mm, 15 m² (10 m x 1.5 m)

    Vanflex 19 mm flexible elastomeric insulation roll for campervans and motorhomes. Thick barrier against cold, heat and road noise on walls and roof. Resists humidity and is easy to cut.

    • Thickness: 19 mm
    • Roll: 10 m x 1.5 m
    • Coverage: 15 m²
    • Walls, roof and doors
    €153.00
    Tax included

    Description

    Campervan insulation: Vanflex 19 mm roll, 15 m² (10 m x 1.5 m), at Braguscamp

    Campervan insulation: Vanflex 19 mm roll, 15 m² (10 m x 1.5 m), at Braguscamp

    The Vanflex 19 mm insulation roll with 15 m² of coverage is a flexible elastomeric material for thermal and acoustic insulation in van conversions, campervans and motorhomes. It comes as a 10 m x 1.5 m roll and is designed for walls, roof and doors, helping you keep a stable temperature inside and cut the noise that reaches the living area.

    Within the Vanflex range this 19 mm roll is the thicker option of the range, chosen when you want the strongest barrier against cold, heat and road noise on large panels. In terms of format it is a full 10 m roll that suits bigger builds or covering several zones in one go. Pick the thickness for each area and the roll length for the size of the job.

    Elastomeric foam is a popular choice in DIY campervan insulation because it bends around curves, cuts cleanly with a sharp knife and copes well with humidity and condensation. Braguscamp supplies the Vanflex 19 mm 15 m² roll with shipping to Spain and Europe, and our team can help you work out how much you need.

    Why choose the Vanflex 19 mm 15 m² roll

    19 mm thick

    Maximum thickness in the Vanflex range for a stronger thermal and acoustic barrier.

    15 m² per roll

    One 10 m x 1.5 m roll gives you 15 m² of material to cover a large part of a build.

    Thermal and acoustic

    Helps keep warmth in during winter, limits heat gain in summer and reduces road and rain noise.

    Flexible elastomeric foam

    Adapts to curves, ribs and irregular panels, so you get fewer gaps and a neater finish.

    Handles humidity

    Elastomeric insulation resists moisture, condensation and mould, which matters inside a lived-in vehicle.

    Easy to cut and fit

    Mark, cut with a sharp knife and fit piece by piece. No special tools are needed.

    Features of the Vanflex 19 mm insulation roll (15 m²)

    19 mm of elastomeric insulation

    Thickness is the key decision in any campervan insulation project. At 19 mm, this roll offers the highest insulating thickness in the Vanflex range, useful where the van will face cold nights, hot summers or long motorway stretches with plenty of road noise. It is best used where the bodywork leaves enough depth behind the interior panels.

    10 m x 1.5 m format: 15 m² of coverage

    Each roll measures 10 m x 1.5 m, giving 15 m² of insulation. The 10 m length lets you cover long walls and the roof with fewer joins, which helps reduce thermal bridges and speeds up the job. It is the logical choice when you are insulating most of the van with the same thickness.

    Thermal and acoustic insulation

    Elastomeric foam works on two fronts. It slows the transfer of heat through the metal skin of the vehicle, so the heater works less in winter and the interior heats up more slowly in summer. It also damps vibration and reduces the drumming of panels, making the van quieter while driving and when rain hits the roof.

    Resistant to humidity and mould

    Inside a campervan, cooking, breathing and wet gear create moisture. Elastomeric insulation copes well with humidity and condensation and helps limit cold spots where water condenses on bare metal. Combined with good ventilation, it helps you keep a drier, healthier interior and protects the bodywork over time.

    Flexible and easy to work with

    The material bends around ribs, curves and corners, so you can cover irregular surfaces with tidy pieces. Measure each panel, cut with a sharp blade and fit it on a clean, dry, grease-free surface. Seal the joins with the Vanflex 15 m x 5 cm joining tape for a continuous layer. Its main uses are side walls, the roof and large flat panels between the ribs.

    What's included

    ✓  1 Vanflex insulation roll, 19 mm thick

    ✓  Roll size 10 m x 1.5 m

    ✓  15 m² of coverage

    ✓  Flexible elastomeric thermal and acoustic insulation

    Coverage and who the 19 mm 15 m² roll is for

    With 15 m² of material in a 10 m x 1.5 m roll, this version is aimed at builders insulating a large share of a van, such as walls and roof, with one thickness. Measure your panels before ordering and add a margin for cuts; if you are unsure, send us the measurements on WhatsApp or by email.

    ✓  Thickness: 19 mm

    ✓  Roll: 10 m x 1.5 m

    ✓  Coverage: 15 m² per roll

    ✓  Best zones: side walls, the roof and large flat panels between the ribs

    Installation advice

    Start by cleaning the metal: remove dust, grease and old adhesive residue, and make sure the surface is completely dry. Make cardboard or paper templates of each panel, transfer them to the roll and cut with a sharp knife. Fix each piece according to the backing of the roll; where extra bonding is needed, use a contact adhesive suitable for elastomeric insulation and follow its instructions.

    Cover as much metal as possible and avoid gaps, because uncovered areas become cold spots where condensation forms. Tape all joins with the Vanflex joining tape. Many builders combine thicknesses: 19 mm on walls and roof and 10 mm on floors, ribs and tight areas. Plan cable runs and fixings for furniture before you insulate.

    Tips to get the most out of it

    ✓  Measure every panel and add a small margin before cutting.

    ✓  Work at room temperature so the material and any adhesive behave well.

    ✓  Press each piece firmly from the centre outwards to avoid air pockets.

    ✓  Seal every join with joining tape to avoid thermal bridges.

    ✓  Insulate the ribs and pillars too, not only the large panels.

    ✓  Keep the van ventilated after the build to control humidity.

    Technical specifications

    ProductThermal insulation roll
    PropertiesThermal and acoustic insulation
    MaterialFlexible elastomeric insulation
    Thickness19 mm
    DimensionsRoll 10 m x 1.5 m
    Coverage15 m²
    ApplicationsWalls, roof, doors
    ColourWhite / grey
    Weight0.8 kg
    ModelVANFLEX3
    ReferenceVANFLEX3

    Vanflex 19 mm 15 m² compared with other Vanflex rolls

    19 mm · 15 m² (this)19 mm · 7.5 m²10 mm · 15 m²
    Thickness19 mm19 mm10 mm
    Roll size10 m x 1.5 m5 m x 1.5 m10 m x 1.5 m
    Coverage15 m²7.5 m²15 m²
    MaterialFlexible elastomericFlexible elastomericFlexible elastomeric
    ApplicationsWalls, roof, doorsWalls, roof, doorsWalls, roof, doors
    ReferenceVANFLEX3VANFLEX4VANFLEX1

    The 7.5 m² roll has the same 19 mm thickness in a shorter format, while the 10 mm roll offers the same coverage with a slimmer profile for tight spaces.

    Ideal for

    ✓  Insulating walls and roof of a campervan

    ✓  Larger van conversions with fewer joins

    ✓  Reducing road and rain noise inside the van

    ✓  Motorhomes, caravans and work vehicles

    ✓  DIY builders who want a clean, flexible material

    Care and maintenance

    ✓  Store unused material rolled, flat and away from direct sunlight.

    ✓  Keep the roll dry and clean until you install it.

    ✓  Check joins and edges from time to time and re-tape any that lift.

    ✓  Ventilate the vehicle regularly to limit condensation.

    Frequently asked questions about the Vanflex 19 mm 15 m² insulation roll

    Is one 15 m² roll enough to insulate my van?

    It depends on the size of the van and the zones you want to cover. A 15 m² roll is designed for larger jobs, such as walls and roof of many vans. Measure the panels, add a margin for cuts and send us the figures on WhatsApp or by email if you want a second opinion.

    Should I choose 10 mm or 19 mm?

    This roll is 19 mm. Choose 19 mm for walls and roof where you have depth and want the strongest thermal and acoustic barrier. Many builders combine both: 19 mm on large panels and 10 mm where thickness would get in the way.

    What is the difference between this roll and the 19 mm 7.5 m² roll?

    Both are 19 mm thick and made of the same flexible elastomeric insulation. The difference is the format: this one is 10 m x 1.5 m (15 m²), while the other is 5 m x 1.5 m (7.5 m²). Choose the bigger roll to cover more area with fewer joins.

    And compared with the 10 mm 15 m² roll?

    It has the same 15 m² coverage and 10 m x 1.5 m format, but 10 mm of thickness. The 10 mm version is slimmer and easier to fit in tight areas; this 19 mm version insulates more on walls and roof.

    Can I use it on the roof, walls and rear doors?

    Yes. The sheet lists walls, roof and doors as applications. Clean and dry the metal first and make sure the pieces are well fixed, especially on the roof. Its 19 mm thickness is particularly useful on the roof, where heat and cold hit hardest.

    Does it help against condensation and mould?

    Elastomeric insulation resists humidity, condensation and mould, and covering bare metal reduces the cold spots where water condenses. It is not a substitute for ventilation, though. Combine the insulation with roof vents or windows that you can open, and avoid drying wet clothes inside without airflow.

    How do I cut and fix the insulation?

    Make templates of each panel, mark them on the roll and cut with a sharp knife or blade. Fit the pieces on a clean, dry, grease-free surface. Where extra bonding is needed, use a contact adhesive suitable for elastomeric insulation and follow its instructions. Finish the joins with joining tape.

    Do I need the Vanflex joining tape?

    It is highly recommended. The Vanflex joining tape, 15 m x 5 cm, seals the joins between pieces so the insulating layer stays continuous. This avoids thermal bridges and small gaps where moisture can collect, and gives a tidier finish before you put up the panels.

    Do you ship to my country?

    Braguscamp ships to Spain and to many European countries. You will see the delivery options and cost for your address at checkout. If you have any question about delivery, write to us on WhatsApp at +34 690 086 820 or by email at info@braguscamp.com.

    Can I pay in instalments and is there a guarantee?

    Yes. At checkout you can choose flexible payment with seQura, which lets you split the purchase into instalments. All products include the 3-year legal guarantee. If you need help choosing between thicknesses or roll sizes, our team will be happy to advise you.

    Order your Vanflex 19 mm 15 m² roll

    Add the roll to your cart on braguscamp.com, or write to us on WhatsApp or at info@braguscamp.com and we will help you calculate the material for your campervan insulation.

    Contact us

    Order your Vanflex 19 mm 15 m² roll

    Vanflex 19 mm Campervan Insulation Roll 15 at Braguscamp

    Have questions about vanflex 19 mm Campervan Insulation Roll 15 or want to know which option suits you best? Our team will advise you with no obligation on WhatsApp. Discover more products in the Braguscamp online shop.

    Product Details

    Property
    Aislante térmico y acústico
    Brand:
    VANFLEX
    Product Family:
    Camper Products and Accessories
    Type of Product:
    Thermal Insulator
    Weight (Kg):
    0.800kg
    Color:
    Gray
    White
    Material:
    Aislante Elastomérico Flexible
    Applications:
    Aislante Térmico y Acústico
    Coverage Area:
    15m²
    Dimensions:
    19mm (15m²)
    Model:
    VANFLEX3
    Espesor:
    19mm
    Referencia:
    VANFLEX3
    EAN:
    8436630980412
    Clase logística
    XXXS
    VANFLEX3
    8436630980412
