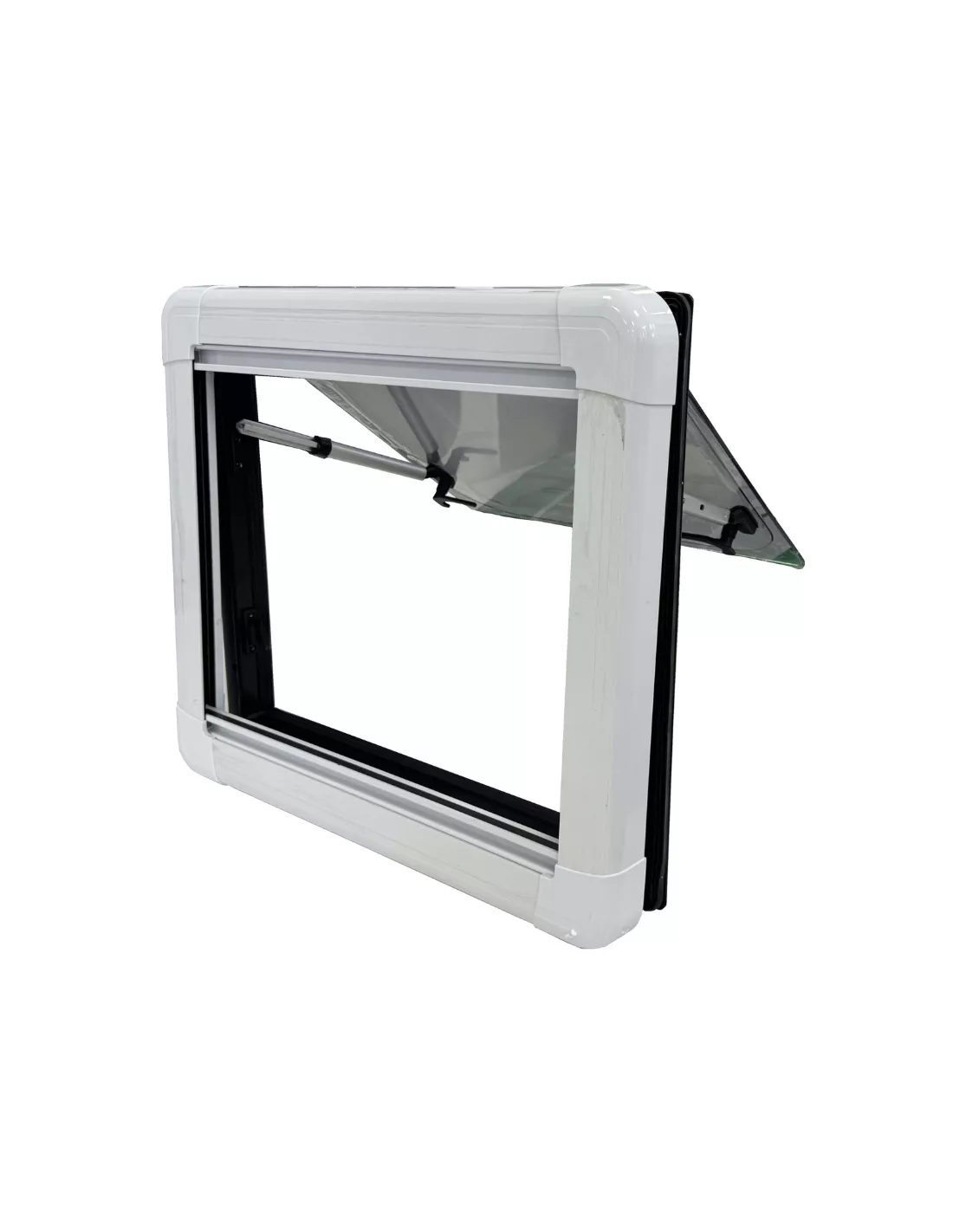

    Vanlook 700 × 400 mm hinged camper window – open with support arm
    Vanlook 700 × 400 mm hinged camper window – open, E43 type-approved
    Vanlook 700 × 400 mm hinged camper window – closed, front view
    Vanlook 700 × 400 mm hinged camper window – open, side view
    Vanlook 700 × 400 mm hinged camper window – open, angled view
    Vanlook 700 × 400 mm hinged camper window – pleated blind and inner mosquito net
    Vanlook 700 × 400 mm hinged camper window – closed, angled view
    Vanlook 700 × 400 mm hinged camper window – inner frame with blind retracted
    Vanlook 700 × 400 mm hinged camper window – open with support arm

    Vanlook Hinged Campervan Window 700 × 400 mm with Blackout Blind and Fly Screen

    Hinged campervan window in a wide and low 700 × 400 mm format, ideal to fit above a kitchenette worktop or over a side bench. Double acrylic glazing with integrated blackout blind and fly screen.

    • Dimensions and cut-out: 700 × 400 mm
    • For walls 30 mm ±1.5 mm
    • Blind and fly screen integrated
    • Model VANLOOK-C4, black
    €189.00

    Description

    Vanlook 700 × 400 mm hinged campervan window with blackout blind and fly screen, at Braguscamp

    Vanlook 700 × 400 mm hinged campervan window with blackout blind and fly screen, at Braguscamp

    Wide but only 400 mm high, the Vanlook 700 × 400 mm hinged window is made for the stretch of wall above a kitchenette or bench seat. It gives a broad view out without eating into the space for wall cabinets, and its hinged opening lets cooking steam escape while you keep the fly screen closed.

    The double acrylic glazing helps insulate against heat, cold and noise, and the integrated blackout blind and fly screen are built into the frame, so you can sleep in darkness or ventilate without insects. The window is designed for walls 30 mm thick (±1.5 mm) and requires a 700 × 400 mm cut-out in the bodywork.

    In black, the VANLOOK-C4 model gives a modern, discreet look to any conversion. Braguscamp stocks this Vanlook window with shipping to Spain and Europe, and our team can help you choose between this size and the 500 × 450 mm or 900 × 350 mm formats before you cut.

    Watch it in action: Vanlook hinged window

    Highlights of the 700 × 400 mm window

    700 × 400 mm cut-out

    The body cut-out is 700 × 400 mm, matching the window dimensions on the sheet.

    Double acrylic glazing

    Two acrylic panes help with thermal and acoustic insulation in all seasons.

    Blind and fly screen

    Both are integrated in the inner frame, ready to use without extra accessories.

    Hinged opening

    The window opens outwards so you can regulate ventilation as needed.

    For 30 mm walls

    Designed for walls 30 mm thick with a tolerance of ±1.5 mm.

    Black finish

    Black frame with a modern look, in a wide and low format to fit above a kitchenette worktop or over a side bench.

    Features of the Vanlook 700 × 400 mm window

    Double acrylic glazing

    The 700 × 400 mm window uses double acrylic glazing, a solution widely used in motorhomes because it is lighter than glass and less prone to shattering. The air gap between the panes helps keep the interior cooler in summer and limits heat loss and condensation in winter, while reducing outside noise when you are parked in a busy place.

    Integrated blackout blind

    The blackout blind is housed in the inner frame and slides over the window when you need it. It blocks the view from outside and keeps morning light out so you can sleep longer, without hanging curtains or magnetic covers. When you open it again, the blind tucks away neatly into the frame and stays protected.

    Integrated fly screen

    The fly screen works independently of the blind, so you can keep the window open on a summer evening and still keep mosquitoes outside. Combined with the hinged opening, it gives you fresh air at night without insects, which makes a big difference on campsites near rivers, lakes or the sea.

    Hinged opening and ventilation

    The window opens outwards on its hinge and can be set at different positions to regulate the airflow. In a wide and low format like this one, fitted above a kitchenette worktop or over a side bench, it is a simple way to clear cooking steam, reduce condensation and refresh the air in the van without opening the doors.

    Cut-out of 700 × 400 mm and 30 mm walls

    According to the sheet, the bodywork cut-out is 700 × 400 mm and the frame is designed for walls 30 mm thick (±1.5 mm). That means you should plan the timber or profile frame and insulation to reach that thickness. Use butyl sealant when fitting: as a guide, one cartridge of butyl is recommended for this size.

    What's included

    ✓  Vanlook 700 × 400 mm hinged window

    ✓  Frame

    ✓  Fly screen and blackout blind

    ✓  Screws

    Dimensions and where to fit it

    This wide and low 700 × 400 mm window is typically fitted above a kitchenette worktop or over a side bench. Before cutting, check that the panel is flat across the full 700 × 400 mm area and that there is no structural rib in the way.

    ✓  Dimensions: 700 × 400 mm

    ✓  Body cut-out: 700 × 400 mm

    ✓  Wall thickness: 30 mm ±1.5 mm

    ✓  Model: VANLOOK-C4

    Installation and compatibility

    Mark the 700 × 400 mm cut-out on the panel, protect the paintwork with tape and cut with a jigsaw suitable for metal. Treat the bare edges against rust, then build an inner frame so the total wall reaches 30 mm (±1.5 mm), the thickness the window is designed for.

    Seal the outer frame with butyl (one cartridge of butyl as a guide for this size) and tighten the screws evenly without over-tightening. If you are not confident cutting the bodywork, have a specialised workshop do it; and if you have doubts about fit, ask our customer service on WhatsApp (+34 690 086 820) or by email at info@braguscamp.com.

    Tips to get the most out of it

    ✓  Measure your panel twice and cut once: check ribs and the flat area before marking.

    ✓  Close the window fully before driving off.

    ✓  Use the fly screen at night and the blind in the morning for a better rest.

    ✓  Open it slightly while cooking to reduce steam and condensation.

    ✓  Combine it with a roof skylight to create cross-ventilation.

    ✓  In strong wind, keep it closed or only slightly open.

    Technical specifications

    Product typeCampervan window (hinged)
    Dimensions700 × 400 mm
    Body cut-out700 × 400 mm cut-out in the bodywork
    Wall compatibilityWalls 30 mm thick ±1.5 mm
    GlazingDouble acrylic glazing
    ExtrasIntegrated blackout blind and fly screen
    ContentsWindow, frame, fly screen and blind, screws
    ColourBlack
    MaterialABS + metal
    Weight10 kg
    ApplicationsVehicle conversion
    ModelVANLOOK-C4
    ReferenceVANLOOK-C4

    700 × 400 mm compared with the nearest sizes

    Vanlook 700 × 400 mm (this)Vanlook 500 × 450 mmVanlook 900 × 350 mm
    ReferenceVANLOOK-C4VANLOOK-C3VANLOOK-C5
    Dimensions700 × 400 mm500 × 450 mm900 × 350 mm
    Body cut-out700 × 400 mm500 × 450 mm900 × 350 mm
    Wall thickness30 mm ±1.5 mm30 mm ±1.5 mm30 mm ±1.5 mm
    GlazingDouble acrylicDouble acrylicDouble acrylic
    Blind and fly screenIntegratedIntegratedIntegrated
    Weight10 kg10 kg10 kg

    All three share the same construction; the choice depends on the cut-out that fits your panel. The 700 × 400 mm model is the one to fit above a kitchenette worktop or over a side bench.

    Ideal for

    ✓  Self-build van conversions needing a 700 × 400 mm window

    ✓  Windows fitted above a kitchenette worktop or over a side bench

    ✓  Replacing an older hinged window of the same cut-out

    ✓  Travellers who want darkness to sleep and air without insects

    ✓  Campervans and motorhomes used all year

    Care and maintenance

    ✓  Clean the acrylic with water, mild soap and a soft microfibre cloth; never use solvents or abrasive pads.

    ✓  Do not scrape ice off the acrylic; let it melt or use lukewarm water.

    ✓  Vacuum the fly screen gently and let the blind dry before rolling it up.

    ✓  Check the outer seal once a year and renew the sealant if you see cracks.

    Frequently asked questions about the Vanlook 700 × 400 mm window

    What cut-out size does the 700 × 400 mm window need?

    According to the product sheet, the bodywork cut-out is 700 × 400 mm, the same figure as the window dimensions. Mark it carefully on a flat area of the panel and check for structural ribs before cutting. If your panel does not offer that flat space, a smaller size may fit better.

    Where is a 700 × 400 mm window usually fitted?

    The 700 × 400 mm format is a favourite above kitchenette worktops, because its low height leaves room for overhead lockers. It also suits a side bench or a seating area in medium-wheelbase vans. Its width gives a good view out while keeping the cut-out manageable on a single panel.

    What wall thickness is it designed for?

    The window is designed for walls 30 mm thick, with a tolerance of ±1.5 mm. In a van, that thickness is usually reached with the metal skin, insulation and an inner timber or aluminium frame. Plan the frame before cutting so the window clamps properly.

    How does it compare with the 500 × 450 mm and 900 × 350 mm models?

    The construction, glazing, blind, fly screen and wall thickness are the same. The difference is the size and the cut-out: 700 × 400 mm for this model, 500 × 450 mm and 900 × 350 mm for the nearest alternatives. Choose by the flat panel space you have and the furniture around the window.

    What is included in the box?

    The window comes with its frame, the fly screen and blackout blind, and the screws, as listed on the sheet. The butyl sealant is not listed in the contents, so plan to buy it separately; as a guide, one cartridge of butyl is recommended for this size.

    Is the window waterproof in rain?

    When it is correctly installed and sealed with butyl, and closed, the window is designed to keep rain out. Most leaks come from an uneven cut or poor sealing, so take your time with that step. Check the seal once a year as part of normal maintenance.

    Can I leave it open while it is windy or while driving?

    Close the window before driving. In strong wind, keep it closed or only slightly open on the sheltered side of the vehicle, because a hinged window acts like a small sail. On calm nights, the fly screen lets you ventilate without insects.

    What is the glazing made of?

    It uses double acrylic glazing, a common choice in motorhomes because it is light and insulates better than a single pane. Acrylic can scratch, so clean it only with water, mild soap and a soft cloth, and avoid solvents or abrasive products.

    Do you ship to my country, and can I pay in instalments?

    Braguscamp ships to Spain and across Europe; delivery options are shown at checkout. You can also choose flexible payment and financing with seQura, subject to approval, to spread the cost of your conversion over several months.

    What guarantee does it have, and who can I ask before cutting?

    The window is covered by the 3-year legal guarantee. Before you cut your van, you can send us your panel measurements or photos through our customer service on WhatsApp or by email, and we will help you choose between 700 × 400 mm and the other sizes.
